PHYNIX Coating Thickness Gauges are precision instruments designed to measure the thickness of coatings on metallic substrates. These gauges are widely used for quality control, inspection, and maintenance applications across various industries. Manufactured in Germany, PHYNIX is known for delivering reliable, accurate, and application-specific coating thickness measurement solutions for demanding industrial environments.
Surfix® Pro X

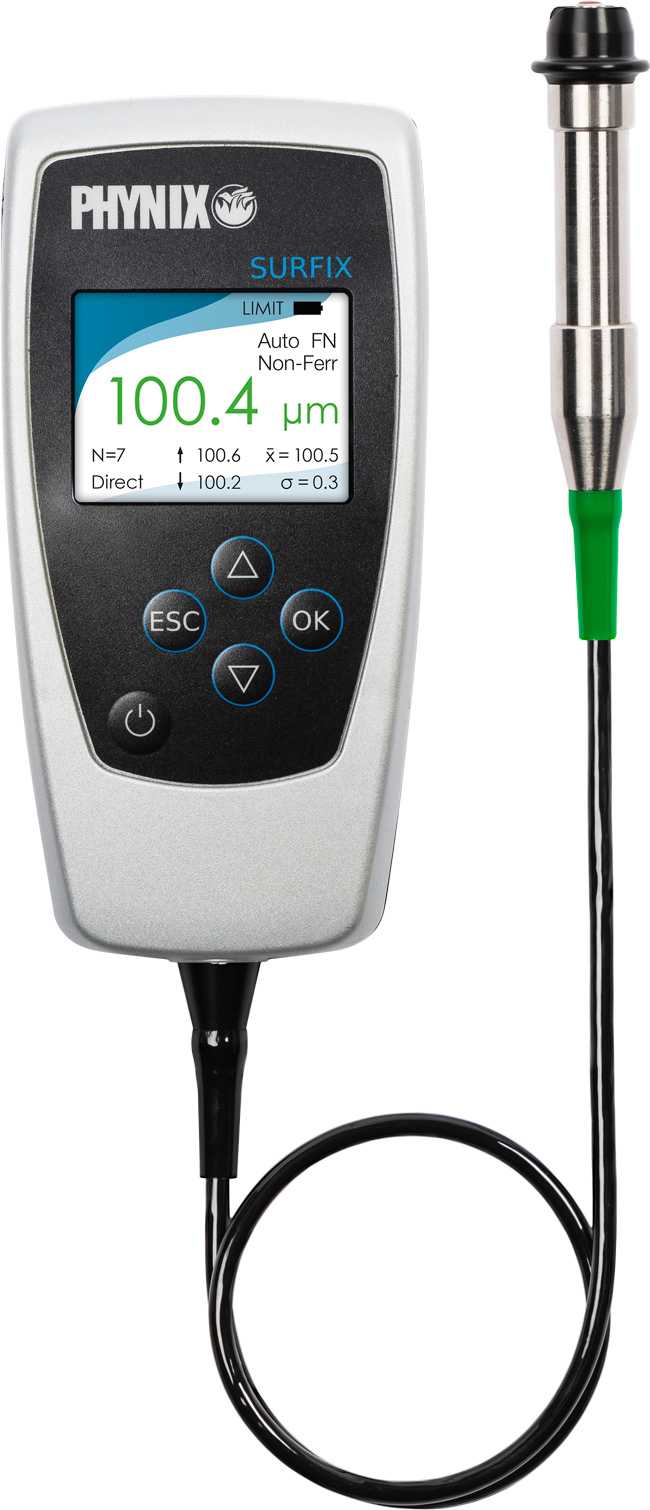

Surfix® EX

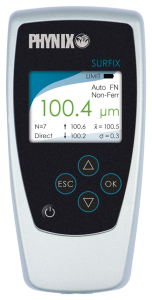

Surfix® SX
PHYNIX offers a range of coating thickness gauges to suit different measurement requirements. Whether you need a compact handheld gauge for routine inspections or an advanced solution with specialized probes for complex geometries, PHYNIX provides a suitable option.
| Feature | Surfix Pro X | Surfix SX | Surfix EX | Pocket-Surfix X | Surfix Easy X | PaintCheck |
|---|---|---|---|---|---|---|
| Probe Type | External Replaceable | External Replaceable | External Fixed | Integrated Probe | Integrated / External | Integrated Probe |
| Measurement Range (Steel) | Up to 30 mm* | Up to 30 mm* | 1.5 mm | 1.5 mm | 3.5 mm | 2.0 / 3.0 mm |
| Measurement Range (Non-Ferrous) | 3.0 mm | 3.0 mm | 1.5 mm | 1.5 mm | 3.0 mm | 3.0 mm |
| Accuracy | Highest Accuracy | High Accuracy | High Accuracy | High Accuracy | Standard Accuracy | Standard Accuracy |
| Data Memory | 100,000 Readings | 2,000 Readings | 2,000 Readings | 80 Readings | No Memory | No Memory |
| Interface | Bluetooth & USB | USB | USB | USB | – | – |
| Optional Probes | Yes | Yes | No | No | No | No |
| Suitable For | Advanced Industrial Applications | Industrial Quality Control | Production & Inspection | Field Measurements | General Inspection | Paint Thickness Inspection |

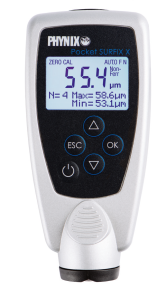

Pocket Surfix® X
Surfix® easy X
PaintCheck
PHYNIX offers a variety of probes to ensure accurate measurements on different surface shapes and components.
Integrated Probe
Integrated probe models are compact, lightweight, and ideal for routine coating thickness measurements on accessible surfaces.
V-Groove Standard Probe
The V-groove probe is suitable for flat, cylindrical, and curved surfaces. It provides stable positioning and improved measurement repeatability on round components.
Right Angle Probe
The right-angle probe is designed for measurements in confined spaces, internal diameters, and areas with limited accessibility.
Tube Probe
Tube probes are ideal for deep internal measurements and applications where standard probes cannot reach the measuring point.
PHYNIX coating thickness gauges operate using two established measurement methods depending on the substrate material.
Magnetic Induction
Magnetic induction is used to measure non-magnetic coatings on ferrous materials such as mild steel and iron. Common applications include paint coatings, powder coatings, and galvanized layers on steel components.
Eddy Current
Eddy current technology is used to measure non-conductive coatings on non-ferrous conductive materials such as aluminium and copper. Typical applications include anodizing, paint coatings, and powder coatings on aluminium surfaces.
PHYNIX coating thickness gauges are used for measuring:
These measurements help manufacturers maintain product quality, comply with industry standards, and improve coating performance.
PHYNIX coating thickness gauges are used across a wide range of industries, including:
To know more about PHYNIX Coating Thickness Gauge pricing, Agaram India offers expert guidance in selecting the right model based on your substrate, coating type, measurement range, and application requirements.
To receive a quotation, you can fill out our enquiry form, send an email to sales@agaramindia.com, or connect with us on WhatsApp at +91-90031-30625. Our team will recommend the most suitable PHYNIX coating thickness gauge and probe configuration for your application.
